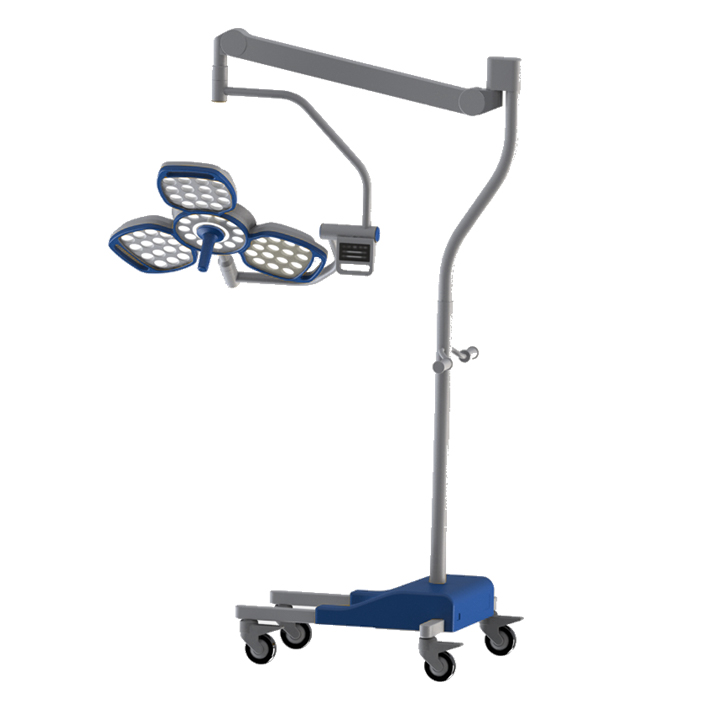

Hospital Operation Room Light LED Operating Theatre Lamp Shadowless Lights Mobile Led Ot Light

Short Description:

Hospital Operation Room Light LED Operating Theatre Lamp Shadowless Lights Mobile Led Ot Light
Type:Operation Illuminating Lamps
Application:OT Room
lamp illumination:≥ 160000lux
color temperature: 4300K ± 500K
working depth: 70-140cm
spot diameter: 17 ~ 26cm
lamp lifecyle:≥ 60000 hours
Certificate:CE/ ISO


Product Detail

Product Tags

Hospital Operation Room Light LED Operating Theatre Lamp Shadowless Lights Mobile Led Ot Light

Hospital Operation Theatre Lights Surgical Led Lamp Shadowless Light



Features:
1. An imported LED cold light source is adopted as operation lighting. As a genuine cold light source, there is almost no
temperature rise at the doctor’s head or the wound.
2.The white LED has a feature of color temperature which is different from the light source of common light for operation. It may enhance the chromatic aberration between blood, other body tissues and organs, and it thus helps the operating doctor to have a clearer view.
3. The LED light is pure-DC power supplied, without any strobe or harmonic interference with other equipment in the working area.
4.The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.
5. The removable handle sheath can be disinfected at the high temperature of 135 ℃.
6. A special optical system is adopted so that the light is evenly illuminated on the observed objects in 360°, without any
virtual image and with high definition.
7. The service life of LED light is long (50,000h), far longer than that of traditional tungsten halogen lamp (1,500h), and it is
over twenty times of the service life of energy saving lamp.
8. LED has high luminous efficiency and it is impact-resistant and strong to resist crumbling, without mercury contamination. The light it sends contains no infra-red or ultraviolet radiation pollution.

Geeta 650 model surgery lamp advantages:

Shadowless operation lamp:

- Imported LED cold light source for lighting devices as surgery.
- Geeta shadowless light series adopts high performance LED chips, which make sure the excellent
illumination performance.
- Max illumination 160000Ix &140000Ix with 10 grade adjustable, to satisfy precise illumination requirements.
- Geeta600 has 72 LED light sources
- It creates identical light sources, and it illuminates evenly and brightly when illumination depth reaches 1200mm.
- Geeta500 has 57 LED light sources.
- It can satisfy illumination requirement of different surgical operations on the requirement of large light spot dimension and illumination depth.

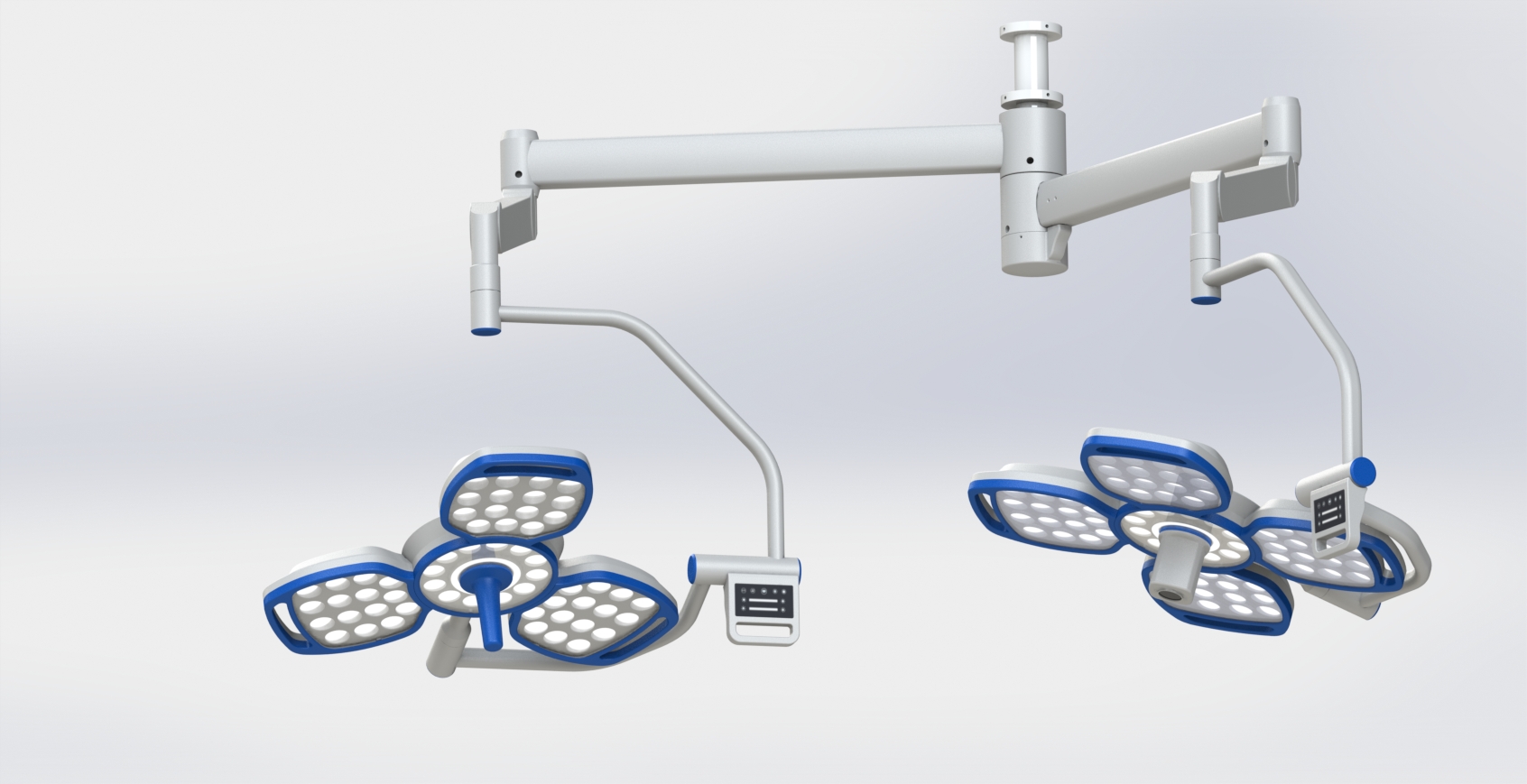

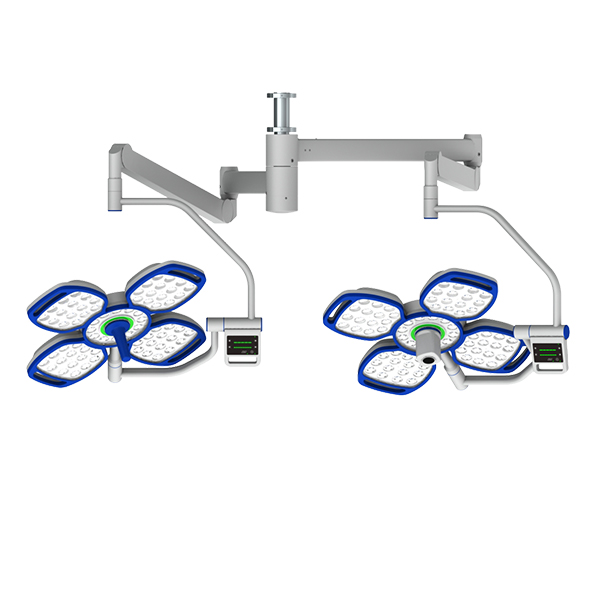

Geeta 600 4 parts light head

1. Verticalcurved arm

2. horizontal curved arm
3. Operation panel
4. light holder
5. Sterilized handle

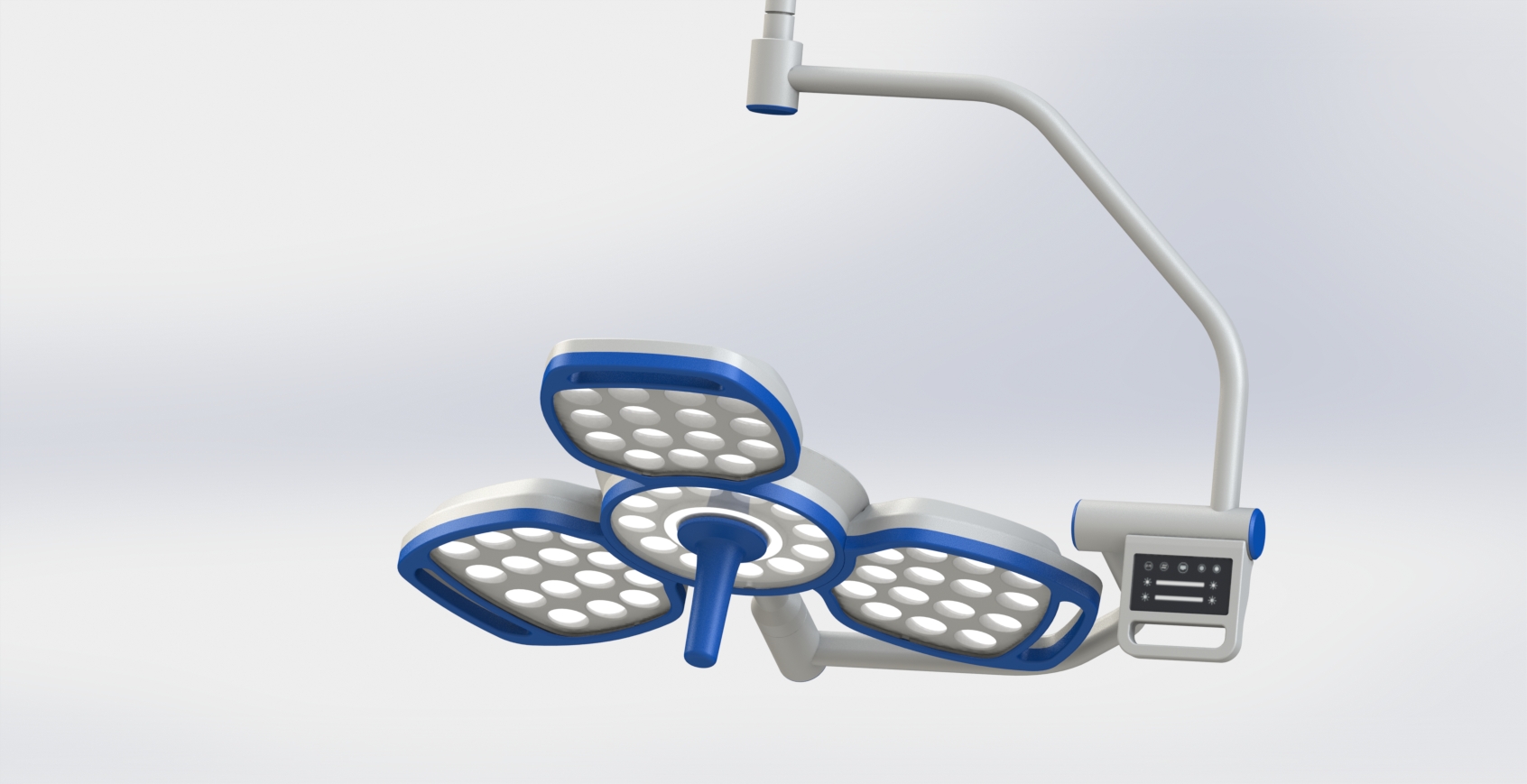

Geeta 500 3 parts light head

1. Verticalcurved arm 2. horizontal curved arm
3. Operation panel
4. light holder
5. Sterilized handle

Light Panel Operation Manual

1.Surgery light spot adjustment-small. 2.Illumination adjustment of surgical lights-small 3. Surgery Lighting Spot Adjustment-Large. 4. Surgery Lighting Illumination Adjustment-Large 5. Surgical lights on / off.

Specification
Items
Geeta600 light head panel(4 parts type)
Geeta500light head panel(3 parts type)
lamp head diameter
740mm
740 mm
lamp max illumination:
160000lx
140000lx
Color – Rendering Index CRI(Ra)
≥95
≥95
Illumination adjusting range
40000~160000lx
40000~140000lx
Illumination temperature rising
<0.5℃
<0.5℃
color temperature
4500K±10%
4500K±10%
light spot diameter(d10)
18~25cm
18~25cm
Light spot diameter / light spot distribution(d10/d50)
0.65
0.55
Lighting depth
120cm ±5%
100cm ±5%
Deep Cavity Shadowless Rate
100% -5%
100% -5%
Single board shadowless rate
80% -5%
65% -5%
Single Board Deep Cavity Shadowless Rate
75% -5%
60% -5%
Single Board Shadowless Rate
75% -5%
60% -5%
Double Boards Deep Cavity Shadowless Rate
65% -5%
55% -5%
Radioactivity Ee/Ec(MW/m²lux)
≤4.5MW/m²lux
≤4.5MW/m²lux
Max Radioactivity(Ee)
<600w/m²
<500w/m²
Head warming rate
<1°
<1°
Lamp bead lifecycle
>60000h
>60000h
Input Power(VA)
220VA
180VA
Input voltage, frequency, fuse
AC 220V±10%, 50Hz±5%, F3AL 250V
Packing & Delivery

To better ensure the safety of the operating theatre use surgery shadowless lamp, professional, environmentally friendly, convenient and efficient packaging services will be provided.Solid enough for shipping by air, sea and others.

Company Profie

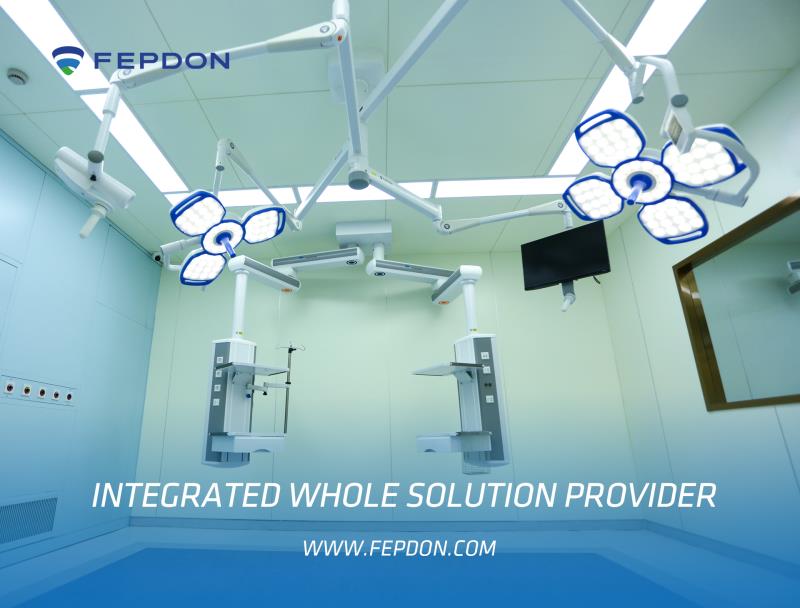

Established in 2009,Shanghai Fepdon Medical Equipment Co.,Ltd is a professional manufacturer engaged in the researches,development,production,sale and services of medical pendants,operation light,Operation table and Medical Gas system and other integerated medical equipments.

Our factory is located in Pudong new area district, Shanghai, China. Our factory is with more than 10 years R&D experiences, we have exported our products to over 30 countries. we’ll keep making efforts to produce innovative new products to meet our grand clients’ needs. Now our most products are approved by CE,ISO9001:13485, ECM,TUV,NQA certificated. etc. Our mission is to provide best solution for medical solutions for hospitals and medical centers worldwide.
Our Services & Strength
1. Company Core upper managerment over 10 year’s medical equipment experience who are of acute market vision and great dream.
2. Mature company product database, all product have seperate brochure/detailed bulk production photo/detailed video for customers.
3. Mature factory production base who can promise on-time shipment and a very stable quality.
Before&After Services
1. For all our oversea’s distributor, our marketing design will specially design the posterto meet their local market needs .
2. For all our oversea’s distributor, we can provide seperate brochurefor each model, also can send hard copy brochure for
better promotion use .
3. All goods after shipment, we can provide 2 years’ quality assurance.

1. How about your company delivery time?

We put your order into our tight production schedule, ensure your punctual delivery time. Production / inspection report before your order packed. Shipping notice/ insurance to you as soon as your order is shipped.

2. How about your after-sale service?

We respect your feed back after receive the goods. We provide 12-24 months warranty after goods arrive. We promise all spare parts available in lifetime use. We respond your complain within 48hours.

3. How about your life-span of the products?

warranty: 10 years. contact sale person immediately if any question. Manufacturer china cheap led shadowless lights for operation room.

4. What do you provided?

we could provide professional sales We value every inquiry sent to us, ensure quick competitive offer. We cooperate with customer to bid tenders. Provide all necessary document. We are a sales team, with all technical support from engineer team.

5. If we want to make our own brand famous, can you accept to print our logo on the machine and outer packing pls?
Sure. We are a genuine manufacturer, we have the ability to follow your idea to make the machines with your professional logo if you are a distributor.
