Overview Technical Specifications Differentials and Optional

The pendant is adopted by the electromagnetic brakes, and handle
is easy for reach.

The tray height is adjustable, and gas terminals are optional (GB, DIN,
US, BS), with optional power sockets (GB Class 3 general)
Function column height is customized (Height: 600mm~1000mm)
Updated options (monitor bracket, display bracket. LED surgical
examination lights, IV poles, straight plug or hanging flowmeter)
Pendants cantilever: double arms 825mm+825mm (effective extended
arm =1200mm) - Revise according to actual dimension

Item	Parameters
Rotating angle	340°
Max. Load	270KG
Brake mode	Electromagnetic
Gas terminal	O2/VAC/AIR/N2O/CO2/N2/AGSS(Optional)
Power socket	220V 50H2 10A
Equipotential ground	Equivalent potential port x2
Intercom interface	RJ45 (6 types)
Instrument platform	Instrument platform 2 layers
Drawer	Self-suction
IV pole	Height adjustable

Category

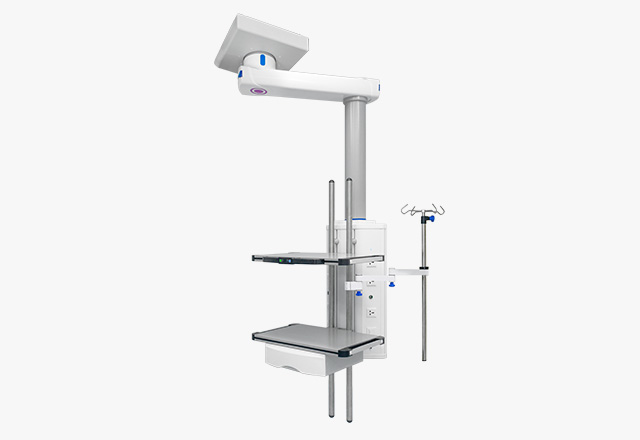

Electromagnetic single arm pendant HM3100PLUS

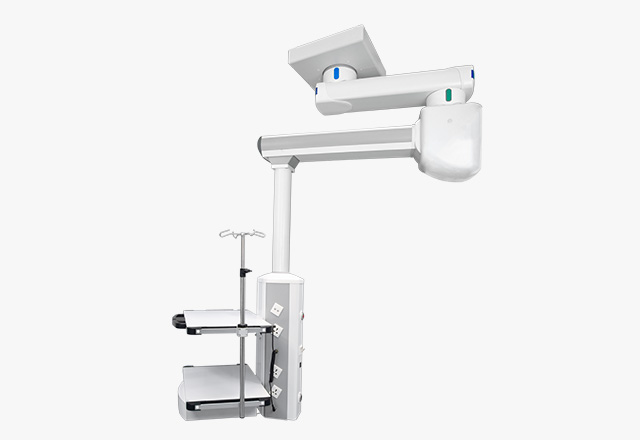

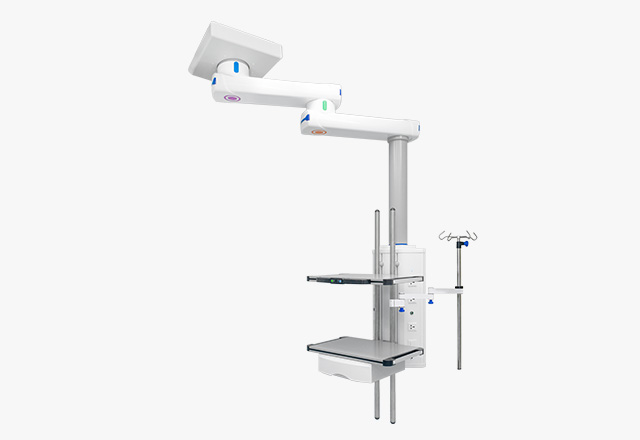

Electromagnetic double arm pendant HM3200PLUS
