Overview Technical Specifications Differentials and Optional

The tray height is adjustable , and gas terminals are optional ( GB , DIN , US , BS ), with optional power sockets ( GB Class 3 general )
Function column height is customized ( Height :600mm-1000mm)
Updated options ( fastener for anaesthesia machine , monitor bracket , display bracket , LED surgical examination lights , IV poles , straight plug or hanging flowmeter )
Pendants cantilever : double arms 800mm+1066mm( effective extended arm >1500mm)--Revise according to actual dimension Technical parameters and configurations

Item	Parameters
Rotating angle	340°
Max .load	270KG
Brake mode	Electrical
Gas terminal	O2/VAC/AIR/N2O/CO2/N2/AGSS(Optional)
Power socket	220V 50H2 10A
Equipotential ground	Equivalent potential port x2
Intercom interface	RJ45 (6 types)
Instrument platform	Instrument platform 2 layers
Drawer	Self-suction
IV pole	Height adjustable

Category

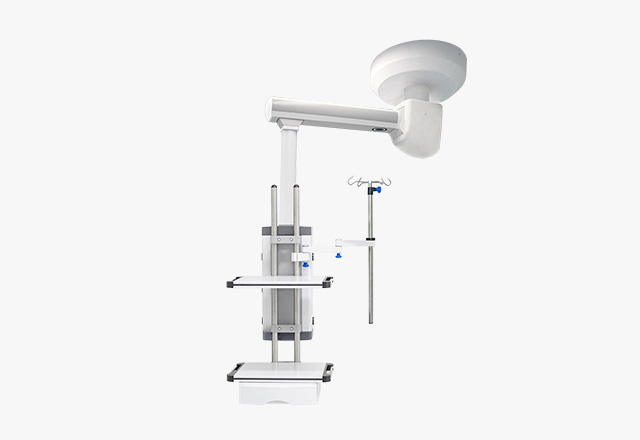

Electric single arm pendant HM7100

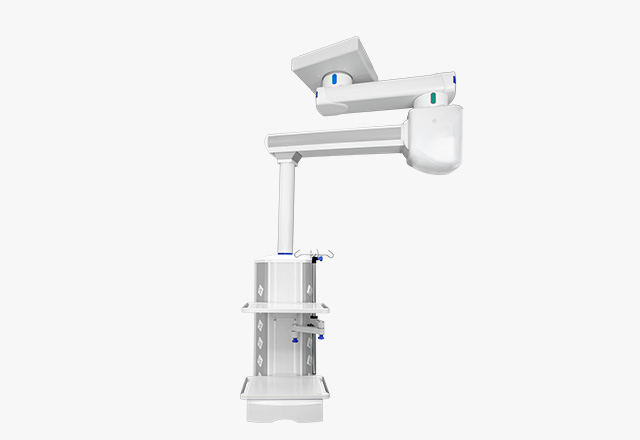

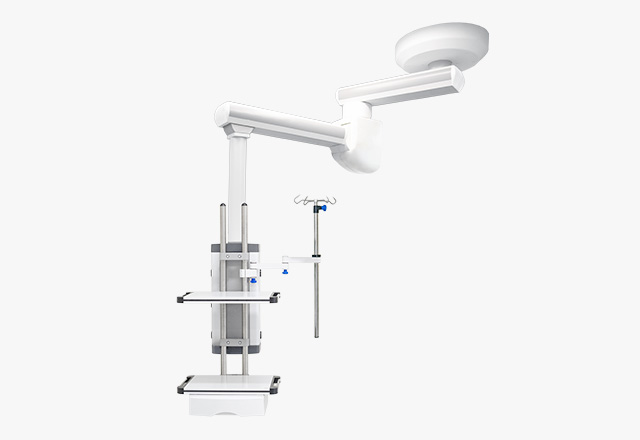

Electric double arm pendant HM7200
