Overview Technical Specifications Differentials and Optional

• The tray height is adjustable, and gas terminals are optional (GB, DIN, US, BS), with optional power sockets ( GB Class 3 general)
• Function column height is customized (Height: 600mm~1000mm)
• Updated options (monitor bracket, display bracket, LED surgical examination lights, IV poles, straight plug or hanging flowmeter)

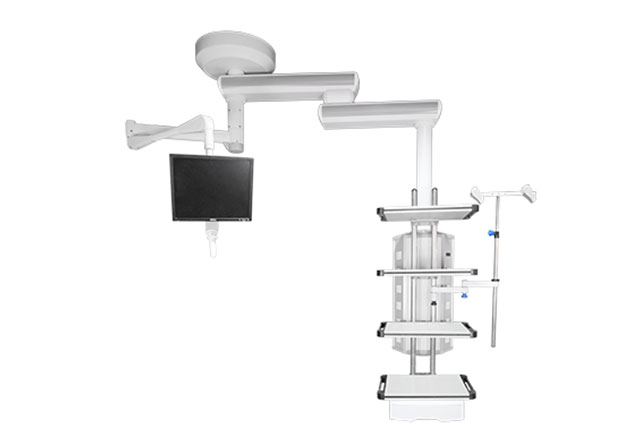

• Pendants cantilever: double arms 940mm+800mm (effective extended arm ≥ 1300mm) - Revise according to actual dimension

Item	Parameters
Rotating angle	340°
Max .load	270KG
Brake mode	Mechanical
Gas terminal	O2/VAC/AIR/N2O/CO2/N2/AGSS(Optional)
Power socket	220V 50H2 10A
Equipotential ground	Equivalent potential port x2
Intercom interface	RJ45 (6 types)
Instrument platform	2-4 layers
Drawer	Self-suction
IV pole	Height adjustable
