Overview Technical Specifications Differentials and Optional

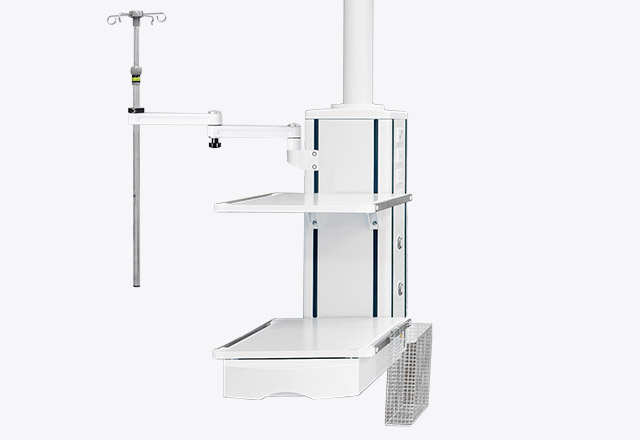

- The cantilever adopts mechanical brakes.
- The tray height is adjustable. The gas terminals is optional(GB, DIN, US, BS). Electrical sockets standard is optional ( CB I, general use).
- Function column height is customized (Height: 600mm~1000mm).
- Options updated( Monitor bracket, display bracket, LED surgical, examination light, infusion pump bracket, straight plug in or hanging humidification bottle)
- Pendant cantilever: double arm 940mm+800mm (Efficient arm length21300mm) single arm 1100mm
- Adjusted according to the actual dimensions of double arms

Item	Parameters
Rotating angle	340°
Max. Load	270KG
Brake mode	Mechanical/Electric/Electromagnetic
Gas terminal	O2/VAC/AIR/N2O/CO2/N2/AGSS(Optional)
Power socket	220V 50H2 10A
Equipotential ground	Equivalent potential port x2
Intercom interface	RJ45 (6 types)

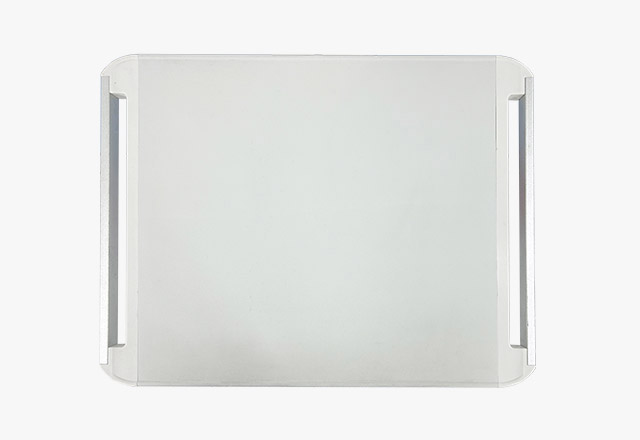

Instrument platform	2-4 layers

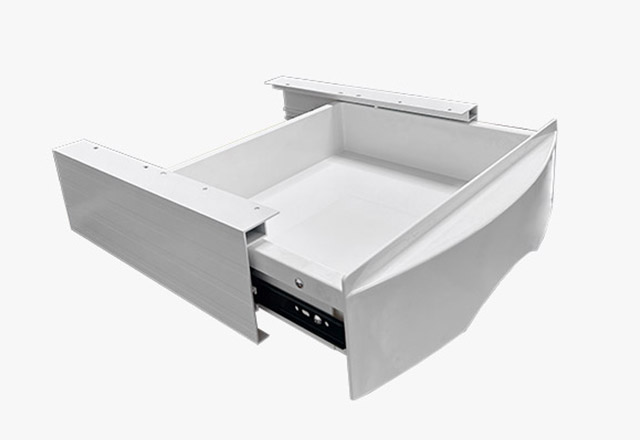

Drawer	Self-suction

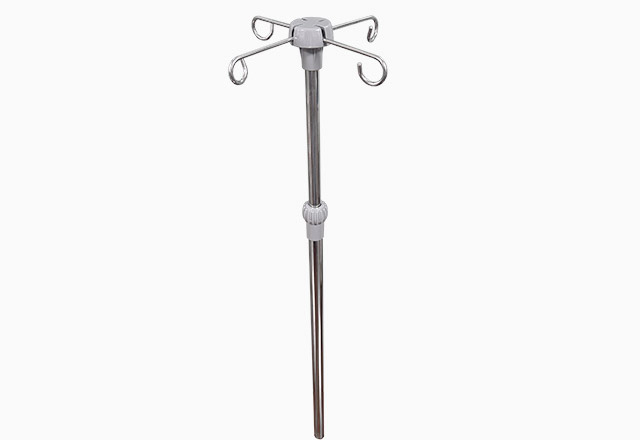

IV pole	Height adjustable
