Overview Technical Specifications Differentials and Optional

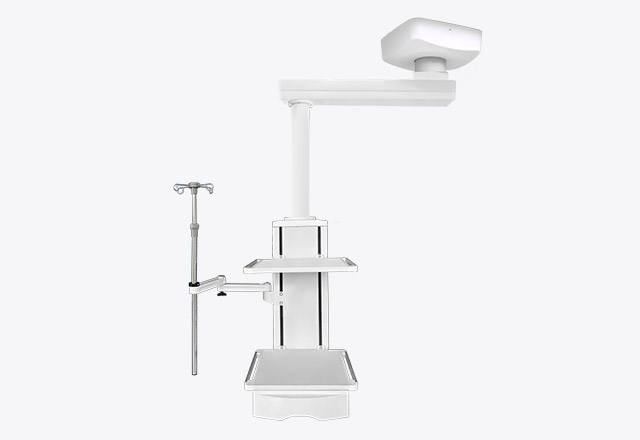

- Cantilever: single arm 1100mm - can be changed according to the actual size of both arms
- The cantilever adopts mechanical brakes.
- Function box height 1000mm (customizable)
- Socket system, gas terminals is optional(GB, DIN, US, BS).

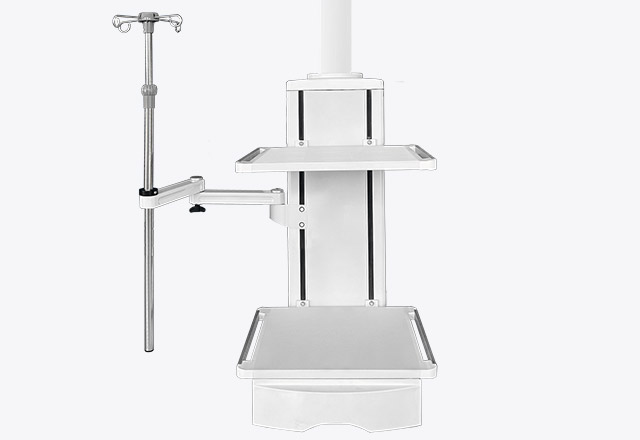

- Function column height is customized (Height: 600mm~1000mm) , self-priming drawer.
- Options updated( Monitor bracket, display bracket, LED surgical examination light, infusion pump bracket, straight plug in or hanging humidification bottle)

Item	Parameters
Rotating angle	340°
Max .load	270KG
Brake mode	Mechanical
Gas terminal	O2/VAC/AIR/N2O/CO2/N2/AGSS(Optional)
Power socket	220V 50HZ 10A
Equipotential ground	Equivalent potential port x2
Intercom interface	RJ45 (6 types)

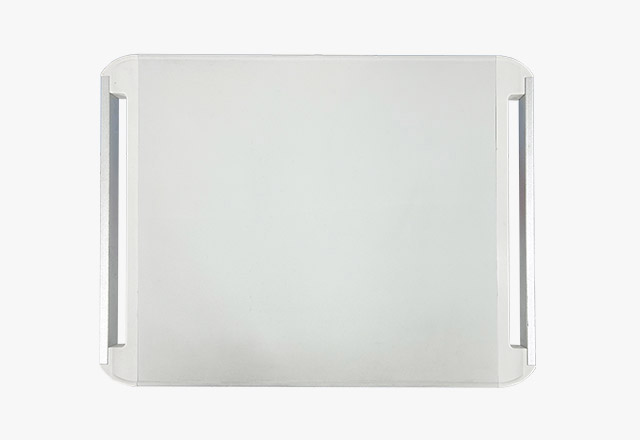

Instrument platform	2-4 trays

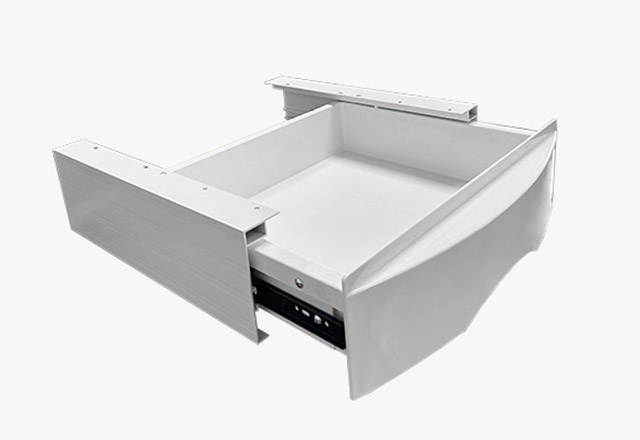

Drawer	Self-suction

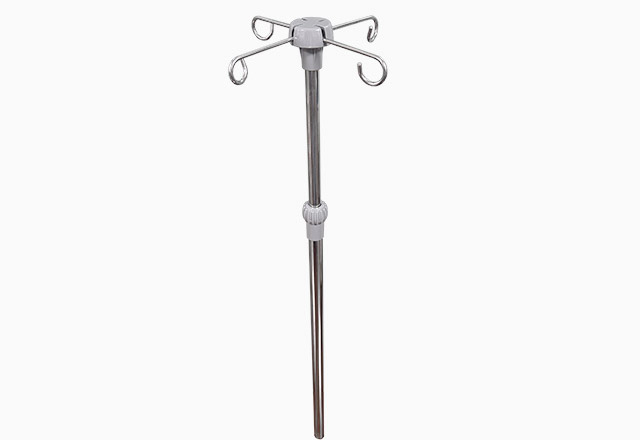

IV pole	Height adjustable

Category
Mechanical Single Arm HM3100 mode

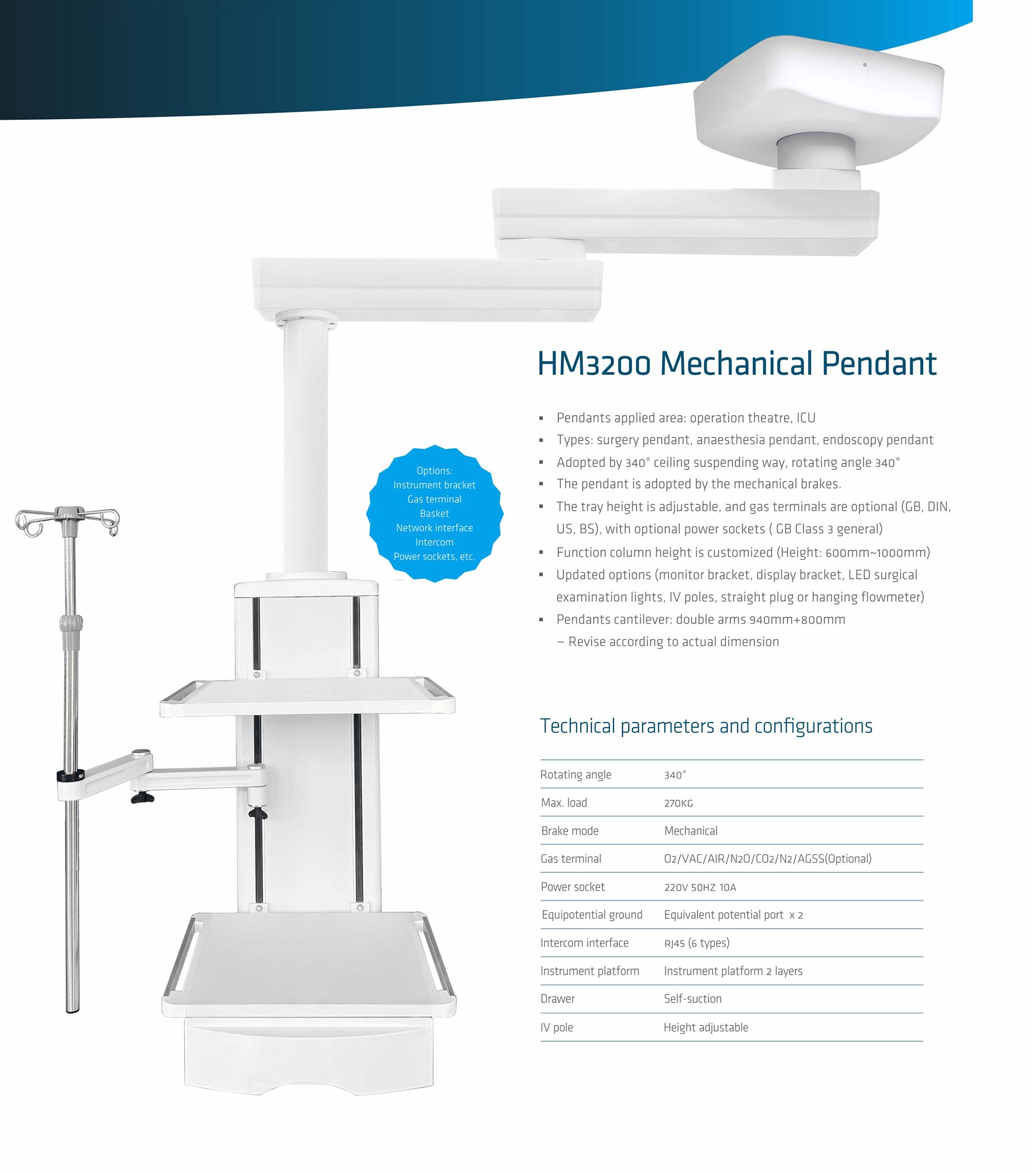

Mechanical Double Arm HM3200 mode
