Twice outlet connection. With shut-off valve can maintain without having to interrupt gas delivery to other outlets.

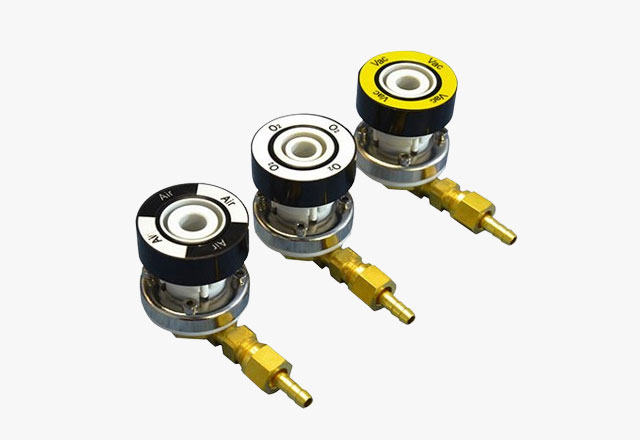

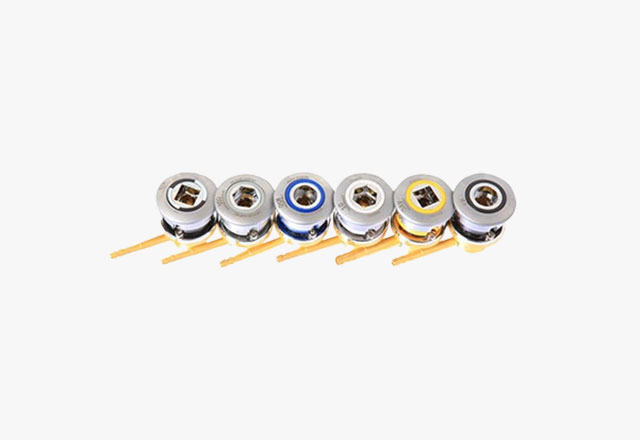

AFNOR (French standard) medical gas terminal is installed at medical gas systems delivery points. Only accept AFNOR quick connect adapters.

1. oxygen, suction, air, laughing gas, carbon dioxide, nitrogen, argon, exhaust emissions (AGSS)
2. Brass base is used to ensure the terminal gas capacitance
3. can withstand more than 20,000 times of insertion and removal
4. composed of two parts: the base and the air port. The base has the gas automatic closing function
5. after the air port is removed, the gas automatically closes
6. with gas maintenance

Item	Parameters
Gas Type	O2, MEDICAL AIR, VAC, N2O, N2, CO2
O.D.	10 mm copper pipeline
Color-coded	ISO32 color-coded for easy gas identification
Test for flow, leaks and cleaned	100% tested
Mounted available	Wall mounting, bead head mounting and Pendant mounting available
