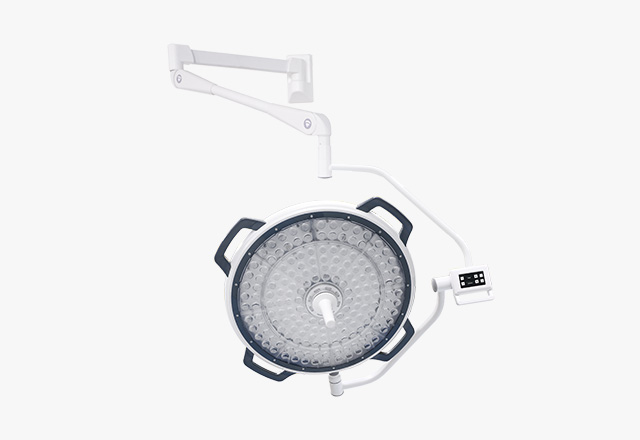

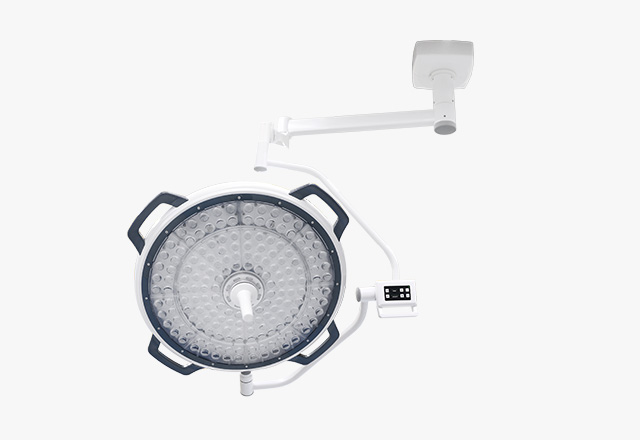

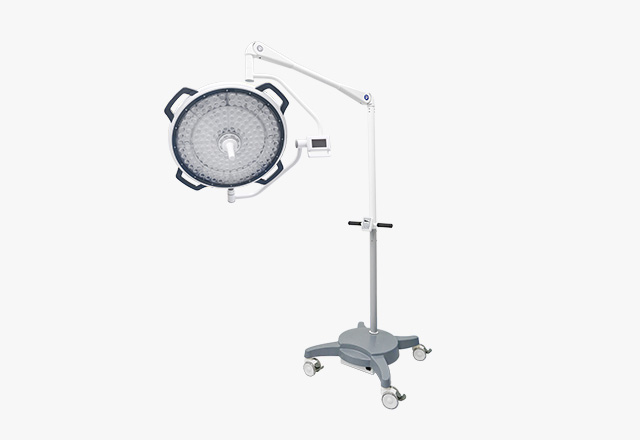

Woosn series shadowless operating light can be widely used in diverse surgical situations to meet the needs of illumination and are the ideal lighting instruments for modern operating theatres.Overall aluminum alloy metal case, with good heat dissipation performance, effectively delay led light decay.
Streamlined design, in line with modern operating room laminar flow purification requirements, easy to clean.
Ultra-high density led light source matrix, with excellent shadowless effect.
800 lamp head large range spot endless adjustment to meet more surgical lighting needs.
Color temperature 3800~5500K five adjustment, to help surgeons find the right color temperature evenly distributed photos.
The uniform distribution of mixed light makes the surgical field have a higher color temperature consistency
Adjustable spot diameter: The spot diameter can be adjusted to fit the operating lamp environment, so that it can eliminate the surrounding shadow, 16-35cm, can be adjusted.
Shadow Removal effect: All medical lamps are tested for shadow removal to ensure proper shadow-free effect, which is very important for medical procedures.
Color temperature adjustable: 5 kinds of color temperature (3800 k / 4200 k / 4650 k / 5100 k / 5500 k) regulation will help surgeons to find more suitable and comfortable light color.

Item	800 light head	900 light head
Diameter of light head（mm）	500	700
Maximum illumination(lx)	140000	160000
Color rendering index CRI(Ra)	≥95	≥95
Red reductivy index（R9）	≥90	≥90
Illuminace agjustment range(lx)	40000~140000	40000~160000
Color temperature（k）	3800-5500	3800-5500
Light feild diameter（mm）	160-350	160-390
Feild uniformity（D10/D50）	0.52	0.5
Shadowless depth ( mm )	600±5%	600±5%
Deep cavity shadowless rate	100%no limit-5%	100%no limit-5%
Single board shdowless rate	30%no limit-5%	50%no limit-5%
Single board deep cavity shdowless rate	30%no limit-5%	50%no limit-5%
Double boards shdowless rate	50%no limit-5%	50%no limit-5%
Double boards deep cavity shdowless rate	50%no limit-5%	50%no limit-5%
Radioactivity Ee/Ec ( mw/m2 lux)	≤3.6	≤3.6
Radiation power（w/m2 ）	＜580	＜580
Life span	＞60000h	＞60000h
Voltage( v )	24V	24V
Power（w）	100	150
Weight（kg）	11	19

Extra UPS Batteries is optional.
