Overview Technical Specifications Differentials and Optional

Features

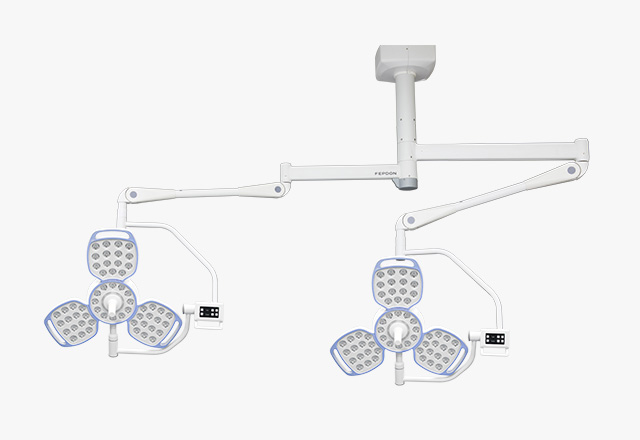

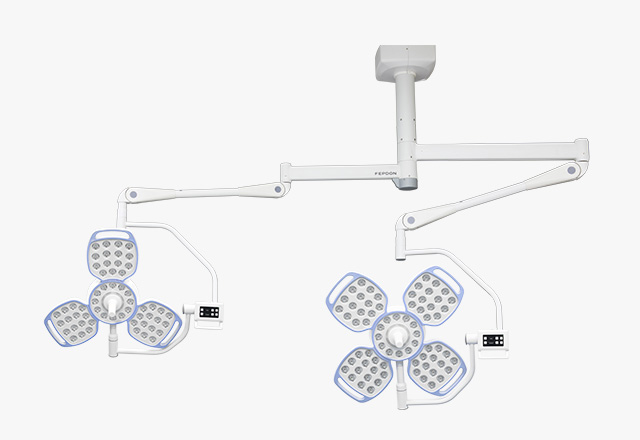

Ceiling type, wall hanging type, mobile type can be choosed，any combination of single/double heads
Using excellent LED chips to ensures the ideal illumination quality
Maximum illumination 140000lx and 160000lx, 10 grades adjustment, to meet more accurate illumination requirements
To achieve the unity of the light source, it can also evenly bright illuminate the depth of 1200mm area
The larger spot size range and illumination depth can meet the lighting needs of more surgical wounds
Uniform color temperature illumination avoids tissue color fluctuation caused by uneven light mixing in the operating field area, effectively reduces the surgeon's misjudgment of diseased tissue, and improves the safety of surgery
Intelligent lighting mode: In the case of different obstacles, through the mapping lighting mode, the Geeta650 shadowless lamp can supplement the light source from different angles, improve the brightness of the light source, and finally achieve 98% shadowless effect
Appearance design: Combination of practicality and beauty. The curved design greatly reduces the resistance of top-down airflow, and the surface is seamlessly sealed like it is easy to clean. The transparent plate is durable and resistant to aging, and its performance is not affected by lighting or daily cleaning. The lamp holder handle can be easily removed for soaking and autoclaving.

Items	500 head light	600 head light
Diameter of light head（mm）	740mm 3 Petals	740mm 4 Petals
Maximum illumination(lx)	140000	160000
Color rendering index CRI(Ra)	≥95	≥95
Red reductivy index（R9）	≥90	≥90
Illuminace agjustment range(lx)	40000~140000,10levels	40000~160000,10levels
Temperature rise of transparent glass	＜0.5℃	＜0.5℃
Temperature rise of the operative field	＜0.5℃	＜0.5℃
Color temperature（k）	4500±10%	4500±10%
Spot diameter（mm）	180-280,5 levels subdevision control	180-280,5 levels subdevision control
Feild uniformity（D10/D50）	0.55	0.65
Illuminance depth ( mm )	130cm±5%	150cm±5%
Radioactivity Ee/Ec ( mw/m2 lux)	≤3.6	≤3.6
Radiation power（w/m2 ）	＜380	＜500
Life span	＞60000h	＞60000h
Voltage( v )	220V/50HZ	220V/50HZ
Power（w）	125	140

Geeta600 owns 72 LED lights, and Geeta500 owns 57 LED lights

Max. ilumination 16000lx and 140000lx are divided into ten grades adjustable, to satisfy the precise illumination requirements

To achieve unity of light sources, it can illuminate evenly at the depth of 1200mm

Optional:
1.Extra UPS Batteries for Mobile light
2.Extra UPS Batteries for Ceiling light
3.Customized 5 steps color temperature
4.Touch panel needs to be reprogrammed

Video camera (optional)：
2 million pixels, optical zoom ≥20 times, mathematical zoom ≥12 times 、HD:1080i/50 720P/50 1080i/59.94 720P/59.94 F=4.7to940mm F1.6-3.5 auto-focus
