Overview Technical Specifications Differentials and Optional

Features

The lamp beads adopt the brand of "Osram" imported from Germany and adopt special optical system.
Using excellent LED chips to ensures the ideal illumination quality
Maximum illumination 140000lx and 160000lx, 10 grades adjustment, to meet more accurate illumination requirements
To achieve the unity of the light source, it can also evenly bright illuminate the depth of 1200mm area
The larger spot size range and illumination depth can meet the lighting needs of more surgical wounds
Uniform color temperature illumination avoids tissue color fluctuation caused by uneven light mixing in the operating field area, effectively reduces the surgeon's misjudgment of diseased tissue, and improves the safety of surgery
Appearance design: Combination of practicality and beauty. The curved design greatly reduces the resistance of top-down airflow, and the surface is seamlessly sealed like it is easy to clean. The transparent plate is durable and resistant to aging, and its performance is not affected by lighting or daily cleaning. The lamp holder handle can be easily removed for soaking and autoclaving.

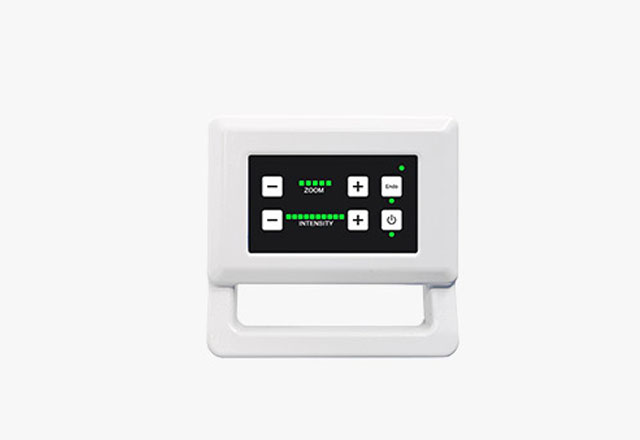

Ergonomics and practical design: The strength and switch of the light can be controlled through the control panel, convenient and quick operation, global control.





Items	Geeta500 light	Geeta600 light head
Diameter of light head	740mm 3 Petals	740mm 4 Petals
Maximum illumination(lx)	140000	160000
Color rendering index CRI(Ra)	≥95	≥95
Red reductivy index（R9）	≥90	≥90
Illuminace agjustment range(lx)	＜0.5℃	＜0.5℃
Temperature rise of the operative field	＜0.5℃	＜0.5℃
Color temperature（k）	4500±10%	4500±10%
Spot diameter（mm）	180-280,5 levels subdevision control	180-280,5 levels subdevision control
Feild uniformity（D10/D50）	0.55	0.65
Illuminance depth ( mm )	130cm±5%	150cm±5%
Radioactivity Ee/Ec ( mw/m2 lux)	≤3.6	≤3.6
Radiation power（w/m2 ）	＜380	＜500
Life span	＞60000h	＞60000h
Voltage( v )	100-240V， 60Hz	100-240V， 60Hz
Power（w）	125	140

Optional:
1.Extra UPS Batteries for Mobile light
2.Extra UPS Batteries for Ceiling light
3.Customized 5 steps color temperature
4.Touch panel needs to be reprogrammed

Video camera (optional)：
2 million pixels, optical zoom ≥20 times, mathematical zoom ≥12 times 、HD:1080i/50 720P/50 1080i/59.94 720P/59.94 F=4.7to940mm F1.6-3.5 auto-focus
